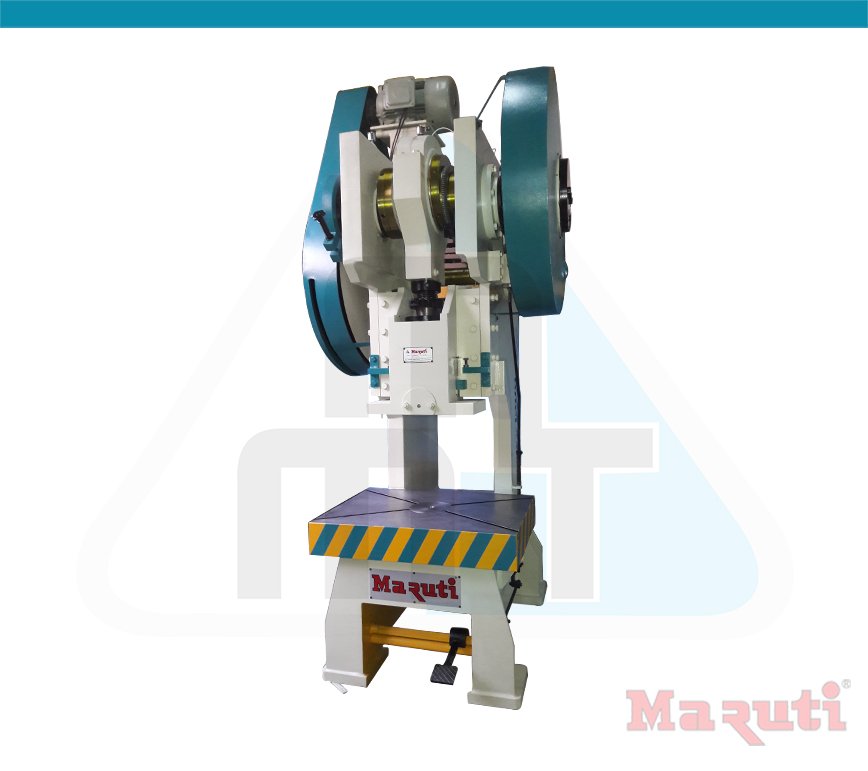

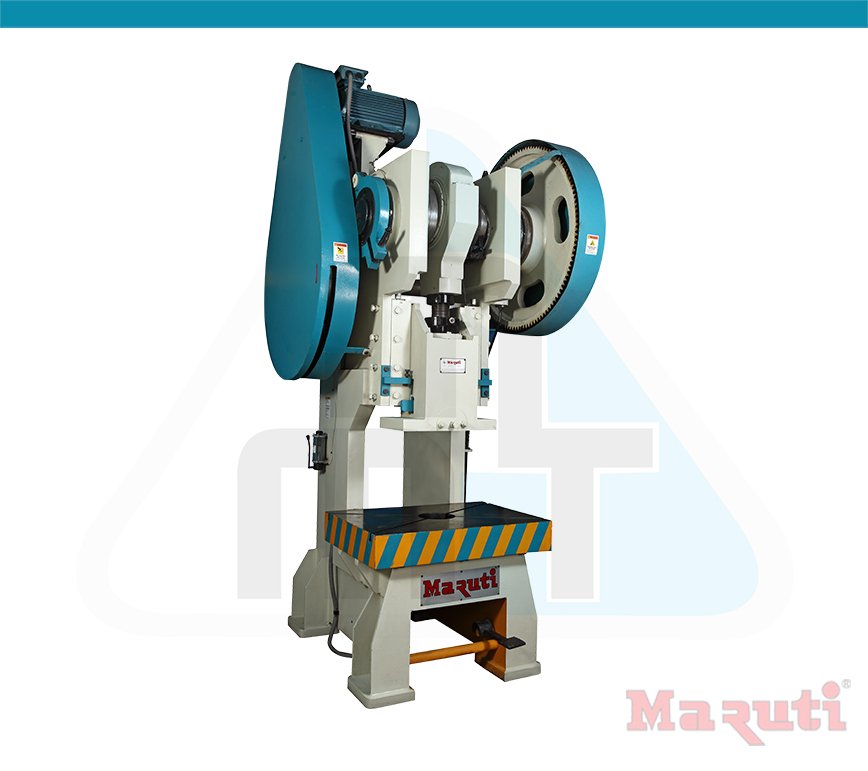

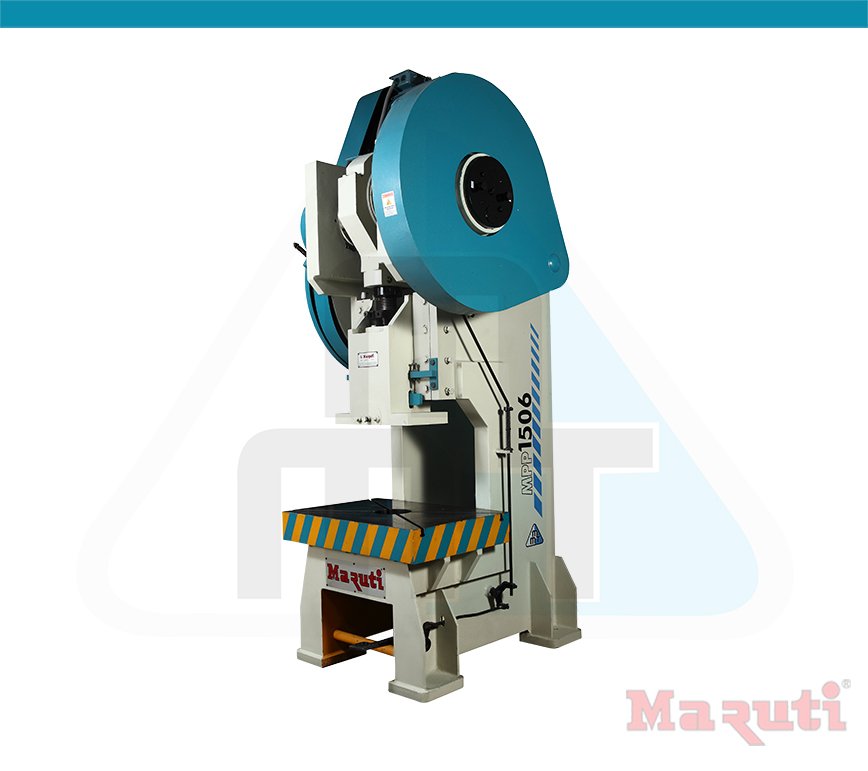

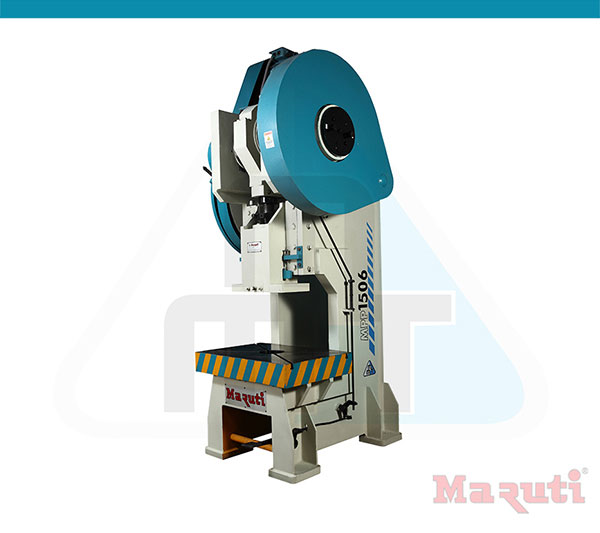

C Frame Power Press Machine

  • C Frame Power Press Machine Manufacturer C Type Power Press Machine Manufacturer
  • C Frame Power Press Machine Exporter C Type Power Press Machine Exporter
  • C Frame Power Press Machine Supplier C Type Power Press Machine Supplier
C Frame Power Press Machine Manufacturer
send inquiry download pdf

Description

MARUTI Power Press are designed and developed through years of experience in sheet metal working machines. MARUTI Power Press are widely accepted in industries for continuous production runs and in areas requiring accuracy and repeatability coupled with high production.

Frame :

The Frame is made of heavy strength steel fabricated plate with suitable cross ribbing for quality & accuracy with precision performance.

Crank Shaft :

Crank Shaft is made of special alloy steel and fitted in with gun metal bushes for accurate alignment.

Clutch :

The Clutch is of rolling key type & it is very rigid & better supported. The Clutch gives continuous stroke for mass production.

Brake:

The Brake is powerful and works on top dead center and compensated by spring.

Fly Wheel :

The Fly Wheel is made of high grade cast iron & it is balanced for storing & releasing adequate energy fort he operations.

Gears :

Gears are of cast steel or fabricated. Gear teeth are generated by imported hobbing.

Lubrication :

Lubrication system is sufficient & accurate for lubricating in all bearing surfaces, sliding surfaces and moving parts without wasting of oil.

Table & Ram :

Table & Ram are made of heavy duty high graded cast iron with seasoned. Both are perfectly aligned to each other to obtain quality job.

Standard FEATURE

  • Cast steel gears which are of imported hobbing
  • Robust build and strong features
  • Resistant to abrasion or corrosion

Specifications

  • All dimensions are in mm.
  • Power supply 400/440 volts, 3 phase, 50 cycle.
    Geard Machine: 1440 RPM / Ungeard Machine: 960 RPM
  • As day to day Improvements are contempted for better performance of the machine. We reserve the rights to after the specifications without prior notice.
  • All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.

TECHNICAL SPECIFICATIONS

Model MPP 31 MPP 51 MPP 102 MPP 203 MPP 303 MPP 504 MPP 804 MPP 1005 MPP 1506 MPP 2006 MPP 2506
Tonnage Cap. 3 5 10 20 30 50 80 100 150 200 250
Stroke Adjustment 2-25 6-25 6-50 13-75 13-75 13-100 13-114 13-127 13-152 13-165 13-165
Depth Of Throat 75 100 125 175 187 200 275 320 350 375 400
Dist Bed to Ram 130 150 200 280 300 350 450 450 500 520 550
Length & Width of Bed (LRxFB) 225 x 150 350 x 200 450 x 250 500 x 350 550 x 375 650 x 400 750 x 550 900 x 640 1000 x 700 1050 x 750 1100 x 800
Hole In Bed 50 65 75 89 102 127 127 190 200 215 230
Hole In Ram 20 25 25 32 38 50 50 50 63 63 63
Crank Shaft Diameter 38 51 60 76 83 95 114 127 152 165 165
Fly Wheel Diameter 330 365 406 508 610 685 863 914 1117 1117 1170
Stroke per Minute 85 85 75 60 60 55 50 45 40 30 30
H P Required 0.5 0.5 1 2 3 5 7.5 10 15 20 25
Weight Approx 150 300 525 1000 1300 2300 4000 5400 6500 8500 11000

Available Model :

  • 'C' Frame Fixed Type
  • 'C' Frame Inclinable Type
  • 'H' Frame Pillar Type
  • Cross Shaft Press
  • Also available tailor made Power Press

Options

  • Geard Drive
  • Ungeard Drive
  • Pneumatic Drive
  • Stroke Length Change
  • Dist. Bed to Ram Change
  • Dist. Center to Gap Change
  • Knock out System
  • Auto Lubrication System
