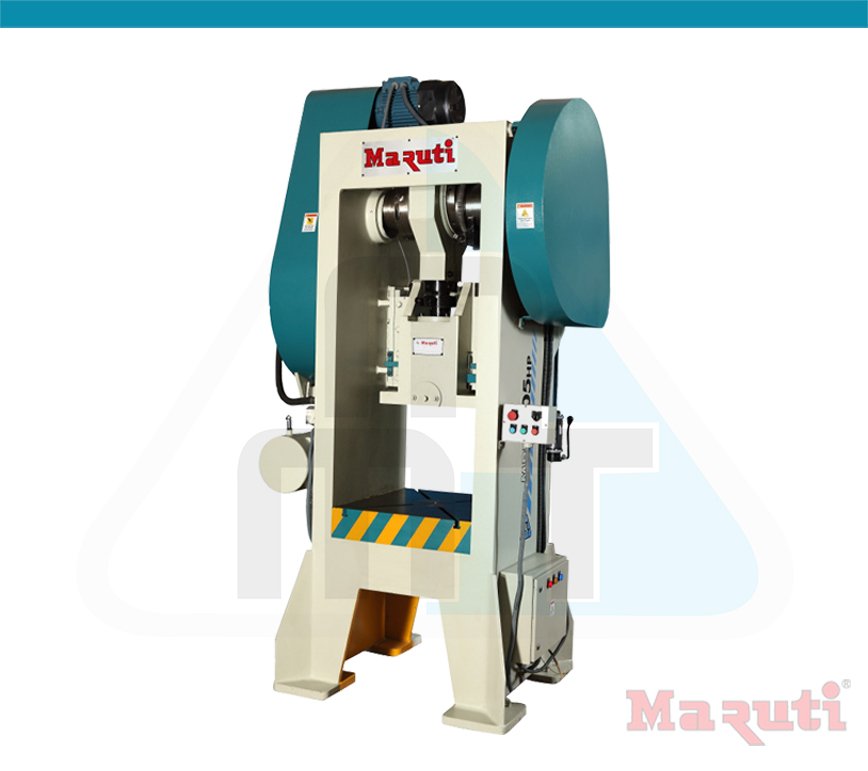

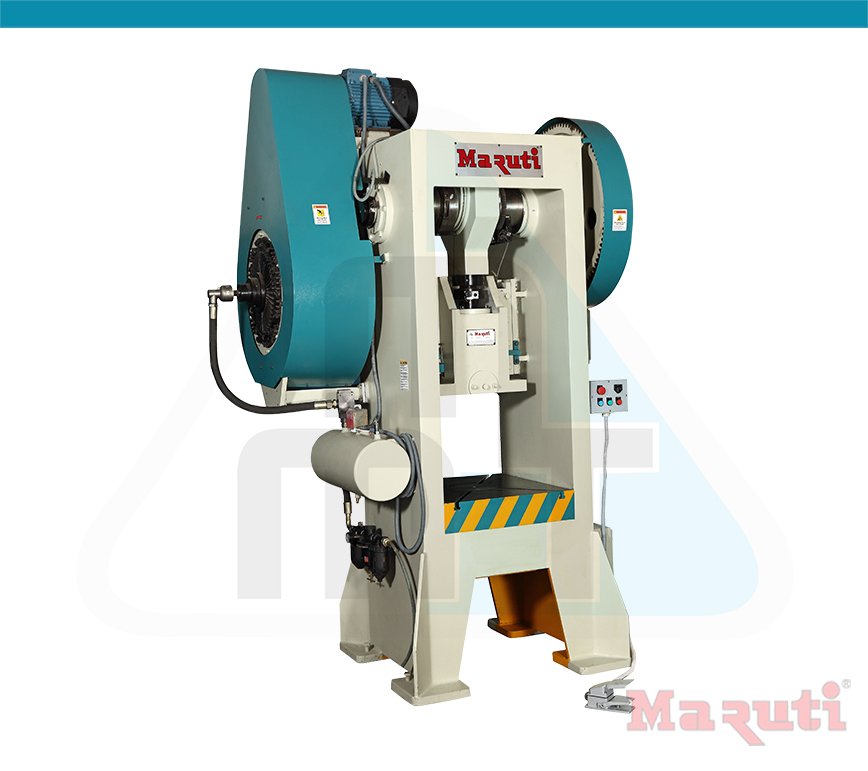

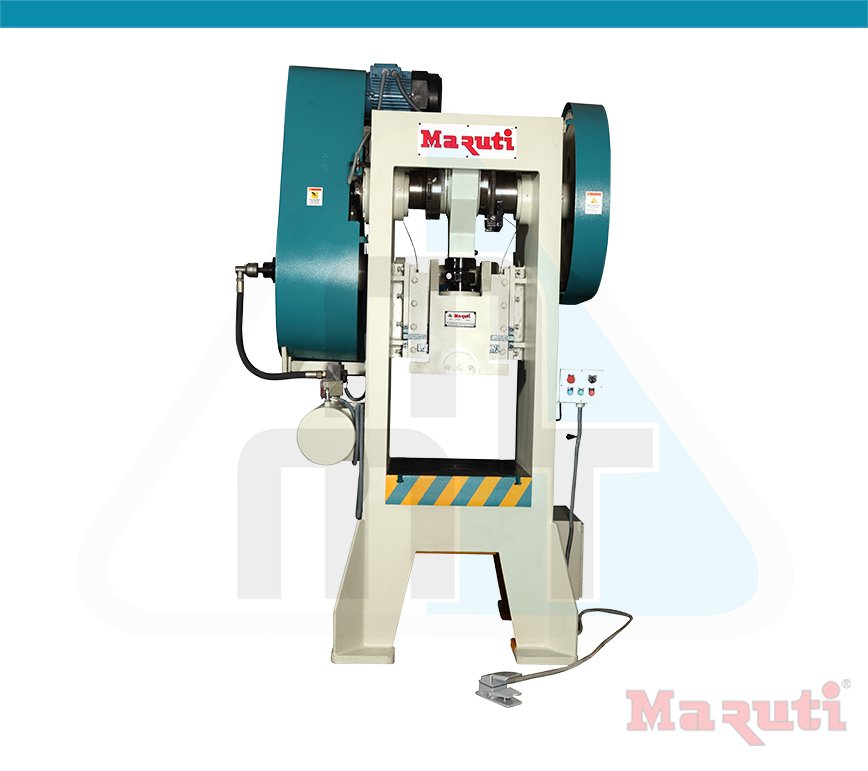

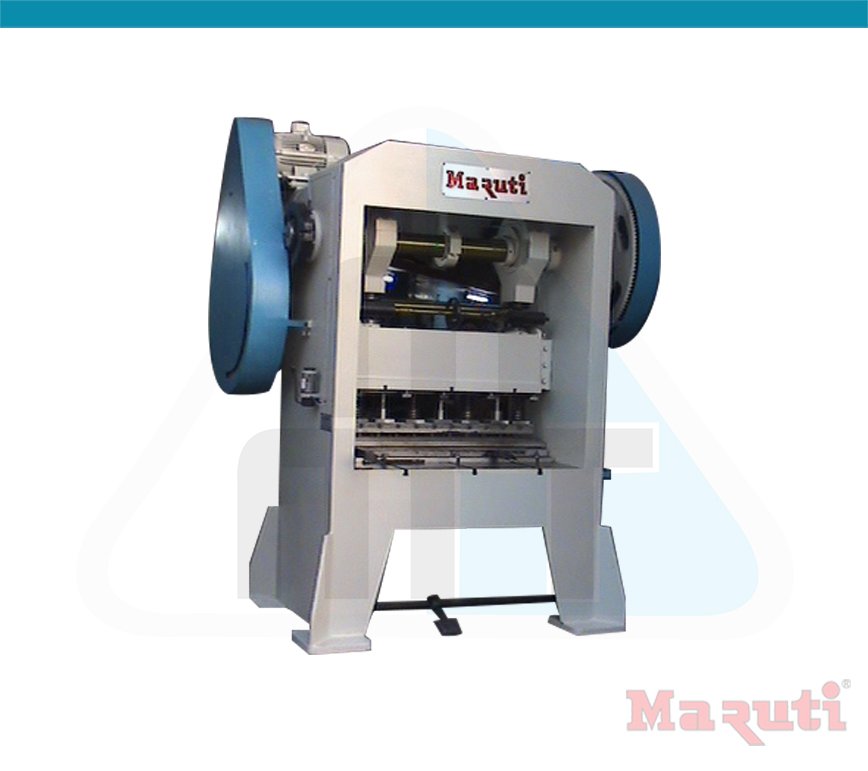

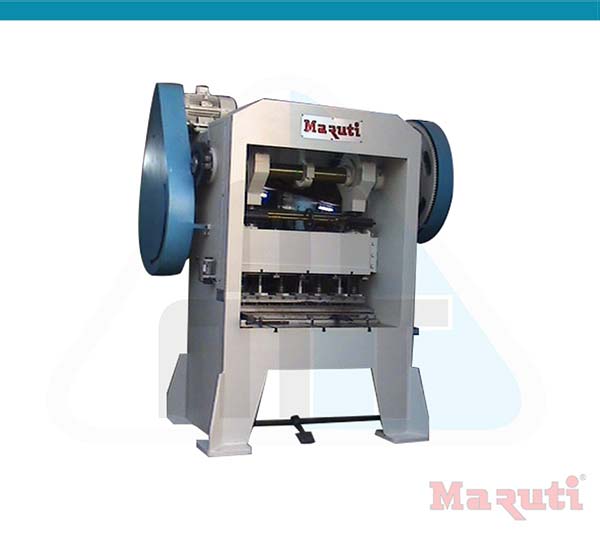

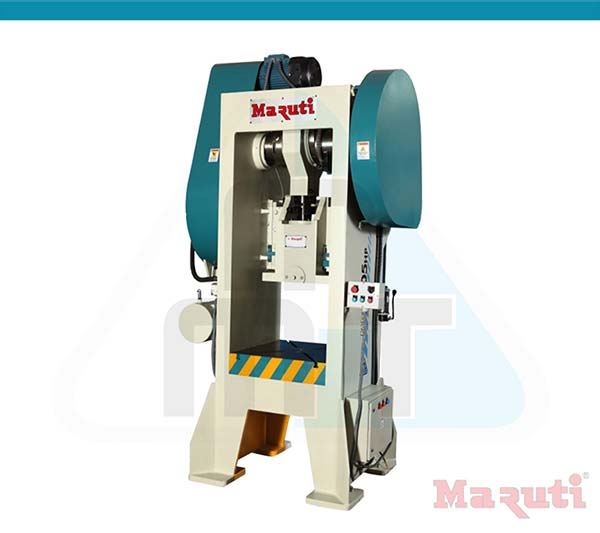

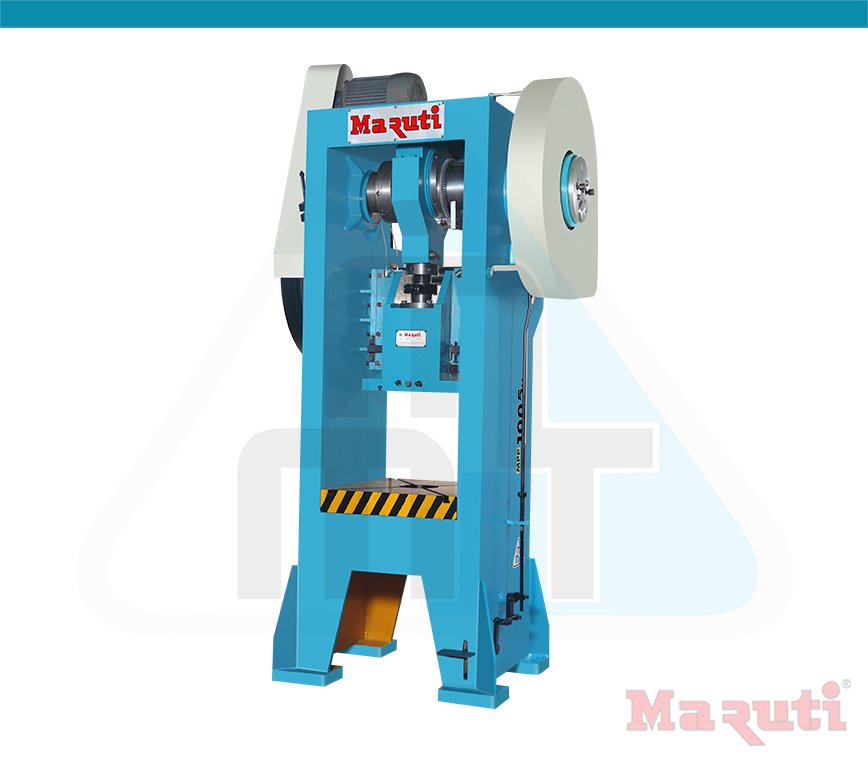

H Frame Power Press Machine

  • H Frame Power Press Machine Manufacturer H Type Power Press Machine Manufacturer
  • H Frame Power Press Machine Exporter H Type Power Press Machine Exporter
  • H Frame Power Press Machine Supplier H Type Power Press Machine Supplier
  • H Frame Power Press Machine Manufacturers H Type Power Press Machine Manufacturers
  • H Frame Power Press Machine Exporters H Type Power Press Machine Exporters
H Frame Power Press Machine Manufacturer
send inquiry download pdf

Description

MARUTI Power Press are designed and developed through years of experience in sheet metal working machines. MARUTI Power Press are widely accepted in industries for continuous production runs and in areas requiring accuracy and repeatability coupled with high production.

Frame :

The Frame is made of heavy strength steel fabricated plate with suitable cross ribbing for quality & accuracy with precision performance.

Crank Shaft :

Crank Shaft is made of special alloy steel and fitted in with gun metal bushes for accurate alignment.

Clutch :

The Clutch is of rolling key type & it is very rigid & better supported. The Clutch gives continuous stroke for mass production.

Brake:

The Brake is powerful and works on top dead center and compensated by spring.

Fly Wheel :

The Fly Wheel is made of high grade cast iron & it is balanced for storing & releasing adequate energy for the operations.

Gears :

Gears are of cast steel or fabricated. Gear teeth are generated by imported hobbing.

Lubrication :

Lubrication system is sufficient & accurate for lubricating in all bearing surfaces, sliding surfaces and moving parts without wasting of oil.

Table & Ram :

Table & Ram are made of heavy duty high graded cast iron with seasoned. Both are perfectly aligned to each other to obtain quality job.

Standard FEATURE

  • Sturdy and robust
  • Smooth and lifelong performance
  • Made with the latest technology

Specifications

  • All dimensions are in mm.
  • Power supply 400/440 volts, 3 phase, 50 cycle.
    Geard Machine: 1440 RPM / Ungeard Machine: 960 RPM
  • As day to day Improvements are contempted for better performance of the machine. We reserve the rights to after the specifications without prior notice.
  • All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.

TECHNICAL SPECIFICATIONS

Model MPP 102H MPP 203H MPP 303H MPP 504H MPP 804H MPP 1005H MPP 1506H MPP 2006H MPP 2506H
Tonnage Cap. 10 20 30 50 80 100 150 200 250
Stroke Adjustment 6-50 13-75 13-75 13-100 13-114 13-127 13-152 13-165 13-165
Dist Bed to Ram 200 280 300 350 450 450 500 520 550
Length & Width of Bed (LRxFB) 360 x 465 460 x 510 500 x 550 560 x 615 615 x 765 665 x 815 715 x 915 765 x 970 815 x 1016
Hole In Bed 75 89 102 127 127 190 200 215 230
Hole In Ram 25 32 38 50 50 50 63 63 63
Crank Shaft Diameter 60 76 83 95 114 127 152 165 165
Fly Wheel Diameter 406 508 610 685 863 914 1117 1117 1170
Stroke per Minute 75 60 60 55 50 45 40 30 30
H P Required 1 2 3 5 7.5 10 15 20 25
Weight Approx 550 1050 1350 2325 4050 5450 6600 8600 11200

Available Model :

  • 'C' Frame Fixed Type
  • 'C' Frame Inclinable Type
  • 'H' Frame Pillar Type
  • Cross Shaft Press
  • Also available tailor made Power Press

Options

  • Geard Drive
  • Ungeard Drive
  • Pneumatic Drive
  • Stroke Length Change
  • Dist. Bed to Ram Change
  • Dist. Center to Gap Change
  • Knock out System
  • Auto Lubrication System
