Description

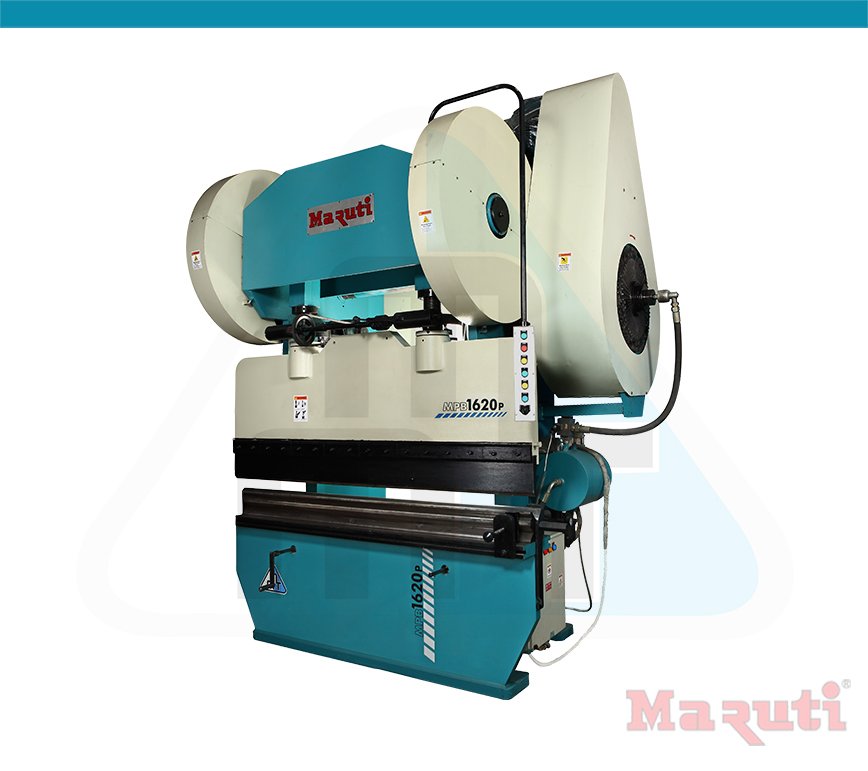

The Mechanical Press Brake Machine is of robust fabricated steel construction of rigid and interlocked design. It is strain free and supports the ram and bed against undesired deflection under permissible loading condition.

Made from steel plates of suitable thickness and machined for straightness and parallelism of the working surfaces. Ram is guided and supported throughout the stroke by accurately machined guide ways. Power is transmitted through two individual gear drives for uniform load distribution throughout the length.

We are known as one of the best Press Brakes Manufacturer and not only this we have achieved success through our out of the world machines so we have become one of the most eminent Hydraulic Press Brake Supplier in India.

FEATURE

  • Foot pedal and die block linking link
  • Fly wheel and gear guard
  • Self lubrication system
  • Motor pulley stroke counter
  • Motor mounting bracket

Specifications

  • All dimensions are in mm
  • Power supply 400/440 volts, 3 phase, 50 cycles
  • We reserve the rights to alter specifications without notice
  • Stringent quality checks for easy and smooth operation

TECHNICAL SPECIFICATIONS

Model Cap.
in
Tons		 Bending Cap.
(Length × Thick.)		 Dist.
Between
Housing		 Stroke Length Stroke
per
Minute		 Ram Adj. Shut Height
Ram Stroke
Down		 Table Height Depth
of
Throat		 Main
Motor
H.P.		 Ram
Adj.
Motor H.P.		 Die Space
(Length × Width)		 Machine Diam.
(L × W × H)		 Approx.
Weight
Kgs.
MPB 215 20 1525 × 1.6 990 50 30 40 200 760 240 3 Manual 1525 × 125 1800 × 1100 × 2300 2150
MPB 220 25 2030 × 1.6 1220 50 30 40 200 760 240 5 1 2030 × 150 2300 × 1150 × 2300 2450
MPB 620 65 2030 × 4 1220 75 30 75 220 800 300 7.5 1.5 2030 × 200 2300 × 1150 × 2300 3300
MPB 825 80 2540 × 4 1700 75 30 75 220 800 300 10 1.5 2540 × 200 2900 × 1500 × 2850 5500
MPB 1025 100 2540 × 5 1700 75 25 75 275 800 300 15 2 2540 × 254 2900 × 1800 × 3400 6900
MPB 1031 100 3125 × 4 1700 75 25 75 275 800 300 15 2 3125 × 200 3400 × 1800 × 3400 7800
MPB 1225 120 2540 × 6 1700 75 25 75 275 900 300 20 2 2540 × 254 2900 × 1800 × 3400 8300
MPB 1231 125 3125 × 5 1700 75 25 75 275 900 300 20 2 3125 × 254 3400 × 1800 × 3400 8900
MPB 1420 140 2030 × 8 1420 75 25 75 275 900 300 25 2 2030 × 254 2600 × 2160 × 3200 6500
MPB 1531 150 3125 × 6 1900 75 25 75 275 900 300 25 2 3125 × 254 3400 × 1800 × 3400 9400
MPB 2031 200 3125 × 8 1900 75 20 75 275 900 300 30 2 3125 × 254 3400 × 2000 × 3600 12500
