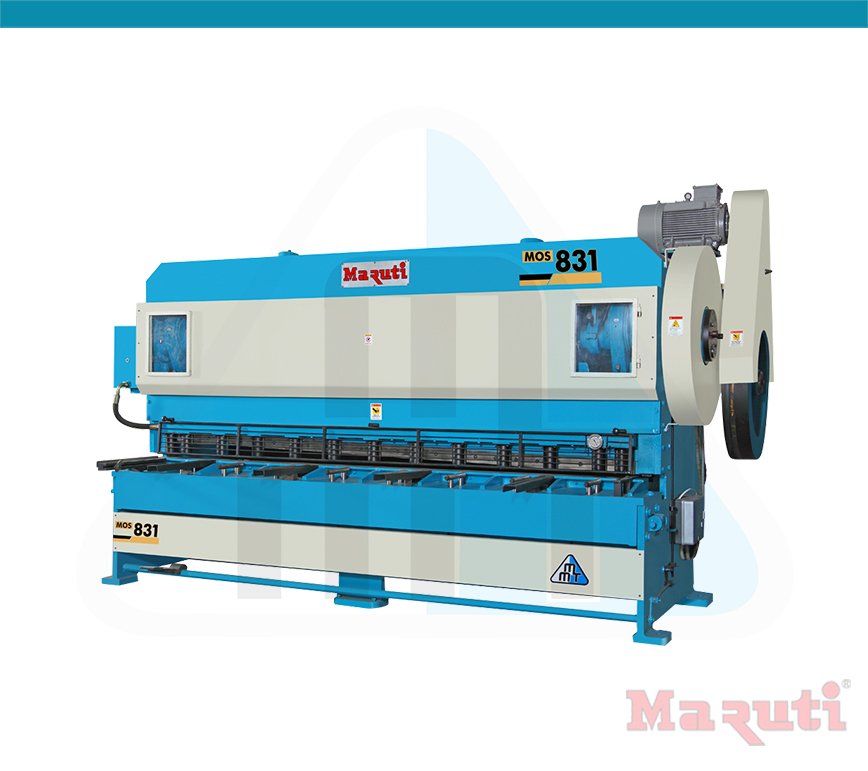

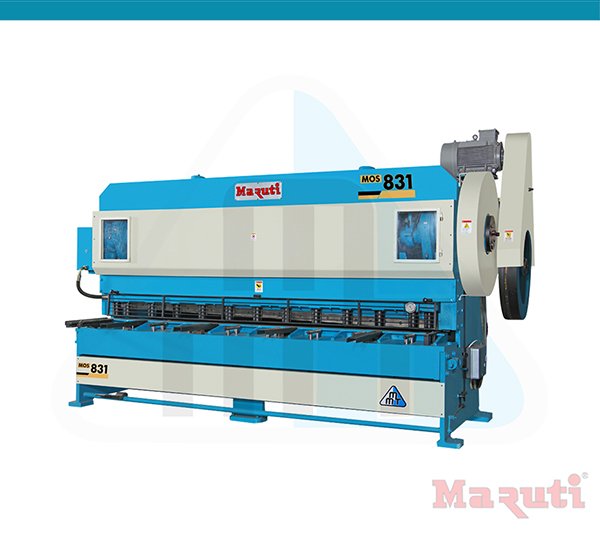

Over Crank Shearing Machine

  • Over Crank Shearing Machine Manufacturer Over Crank Shearing Machine Exporter
Over Crank Shearing Machine Supplier
send inquiry download pdf

Description

MARUTI Shearing Machines have been designed and developed through structural analysis for continuous production, accuracy and repeatability.

Frame :

Ridig steel frame of Maruti Shears are optimally designed to avoid weak sections at load supports and is of interlocked design. The ramis guided throughout it's length by accurate machined guide ways ensuring proper clearance and clean cut.

Hold - Down System :

Spring loaded mechanical hold down pads hold the sheet securely, to avoid slipping and bowing resulting in clean square cuts. Hold down units are provided with oversize pads to avoid impression on sheet metal on request.

Knives :

Maruti Shears are provided with high quality single segment (HcHcr) Knives for longer tool life. Ease in assembling of knife reduces down-time. the knife blades are four edged.

Lubrication :

All bearing parts and guide surface are lubricated through hand-operated lubrication system.

Fly Wheel :

The Fly Wheel is made of high grade cast iron & it is balanced for storing & releasing adequate energy forthe operations.

Mechanical Back Gauge :

This is the standard equipment provided on all Maruti Shears. Scale on the back gauge gives instantaneous reading of distance between shears and back gauge. Thus avoiding errors and maintenance encountered in electronic equipment.

Finger Guard :

Fitted in front of hold-down for operator protection without obstructing viewing.

Standard FEATURE

  • Foot pedal
  • Fly wheel and gear guard
  • Self lubrication system
  • Motor pulley
  • A Pair of Four Edge Sher Blade
  • Standard Front Gauge
  • Back Gauge(Manual Operated)

Specifications

  • All dimensions are in mm
  • Power supply 400/440 volts, 3 phase, 50 cycles
  • As day to day Improvements are contempted for better performance of the machine. We reserve the rights to after the specifications without prior notice.
  • All the machines undergo a through check-up by our expert engineers before dispatch to ensure their smooth and trouble free operation.

TECHNICAL SPECIFICATIONS

Model Cutting Cap.
in M.S.
(Length × Thick)
Depth
of Throat
Standard
Front
Gauge
Standard
Rear
Gauge
Table
(Height ⁄ Width)
Blade
(L × W × T)
Stroke
Per
Minute
Hold
Down to
Knife Edge
Machine
(L × W × H)
Main Motor
HP ⁄ KW
Approx.
Weight
Kgs.
MOS 612 1270 × 6 80 600 750 770 ⁄ 450 1270 × 75 × 18 30 45 2250 × 1950 × 2300 7.5 ⁄ 5.6 4500
MOS 615 1525 × 6 80 600 750 770 ⁄ 450 1525 × 75 × 18 30 45 2500 × 1950 × 2300 10 ⁄ 7.7 5100
MOS 620 2030 × 6 80 600 750 770 ⁄ 450 2030 × 75 × 18 30 45 3000 × 1950 × 2300 10 ⁄ 7.7 6300
MOS 625 2540 × 6 80 600 750 770 ⁄ 450 2540 × 75 × 18 30 50 3550 × 1950 × 2300 12⁄ 9.7 7200
MOS 631 3125 × 6 80 600 750 770 ⁄ 450 3125 × 75 × 18 30 50 4150 × 1950 × 2400 15 ⁄ 11.2 9800
MOS 815 1525 × 8 80 600 750 770 ⁄ 450 1525 × 75 × 18 30 50 2570 × 1950 × 2300 12.5 ⁄ 9.7 6500
MOS 820 2030 × 8 80 600 750 800 ⁄ 450 2030 × 75 × 18 25 50 3150 × 1950 × 2500 12.5 / 9.7 7000
MOS 825 2540 × 8 80 600 750 800 ⁄ 450 2540 × 75 × 18 25 50 3670 × 1950 × 2500 15 ⁄ 11.2 8000
MOS 831 3125 × 8 80 600 750 800 ⁄ 450 3125 × 90 × 18 25 50 4250 × 1950 × 2600 20 ⁄ 15 11500
MOS 1020 2030 × 10 80 600 750 800 ⁄ 450 2030 × 90 × 18 25 75 3200 × 1950 × 2600 15 ⁄ 11.2 7800
MOS 1025 2540 × 10 80 600 750 800 ⁄ 450 2540 × 100 × 22 25 75 3700 × 1950 × 2600 20 ⁄ 15 9100
MOS 1031 3125 × 10 80 600 750 800 ⁄ 450 3125 × 100 × 22 25 75 4300 × 1950 × 2600 25 ⁄ 18.7 9600
MOS 1320 2030 × 13 80 600 750 800 ⁄ 450 2030 × 100 × 25 25 75 3250 × 1950 × 2600 20 ⁄ 15 9250
MOS 1325 2540 × 13 80 600 750 800 ⁄ 450 2540 × 100 × 25 25 75 3750 × 1950 × 2600 25 ⁄ 18.7 10500
MOS 1331 3125 × 13 80 600 750 800 ⁄ 450 3125 × 100 × 25 25 75 4350 × 1950 × 2600 30 ⁄ 22.5 13000

Options

  • Motorised Back Gauge
  • Automatic Lubrication System
  • Vee-Belts
  • Electric Motor & Starter / Control Panal Board
  • Squaring Gauge System
  • Stroke Counter
  • Extension Squaring Arm
  • Hydraulic Holddown Pads (Cam-Pump)
